Draw a circular correlation wheel plot

Arranges variables around a circle, grouped and colour-tiled by category, and connects them with curved links whose colour maps to the correlation coefficient. Non-significant, weak, and (optionally) within-category correlations are masked. This reproduces the MNE-style "connectivity circle" natively in R using circlize.

Usage

corr_wheel(
  data,
  groups = NULL,
  scheme = NULL,
  colors = NULL,
  labels = NULL,
  order = NULL,
  sig_level = 0.05,
  r_threshold = 0,
  hide_within_group = TRUE,
  method = c("pearson", "spearman", "kendall"),
  adjust = "holm",
  use = "pairwise.complete.obs",
  r_limits = c(-0.5, 0.5),
  palette = NULL,
  start_degree = 90,
  group_gap = 5,
  node_gap = 1.5,
  link_lwd = 1.6,
  sort_links = TRUE,
  tile_height = 0.06,
  label_cex = 0.85,
  label_pad = 0.45,
  label_r_offset = 0.07,
  tile_border = "white",
  title = NULL,
  legend = TRUE,
  colorbar = TRUE,
  legend_title = "Category",
  colorbar_title = "Correlation\ncoefficient"
)

Arguments

data

A data frame or matrix with one row per observation (e.g. one row per patient) and variables in columns. Correlations and p-values are computed for you via compute_correlations() using method, adjust, and use. When groups is supplied, only the variables it names are used (in that order), so extra columns such as an ID are simply ignored.

groups

Category assignment for the variables. Either a named vector (variable = category) or a named list (category = c(variables)). The order of categories here sets their order around the wheel. If NULL, all variables share one group.

scheme

A colour scheme providing the base category colours and diverging link palette together. One of:

NULL (default) – use the package default scheme;
a built-in scheme name, see corr_wheel_schemes() (e.g. "colorblind", "ocean", "vivid", "alimetry");
a custom list(colors = , palette = ), as returned by corr_wheel_scheme() (optionally tweaked).

colors and palette (below), if supplied, override the scheme's corresponding piece – so you can pick a scheme and still tweak one category's colour, for instance.

colors

Named vector mapping category to colour, layered on top of scheme (or the default palette if scheme is NULL). Only the categories you name are overridden; others keep the scheme's colour.

labels

Named vector mapping variable name to a display label. Missing entries fall back to the variable name.

order

Optional character vector giving an explicit variable order around the wheel. Overrides ordering by groups. Must contain every variable.

sig_level

Significance threshold; links with adjusted p > sig_level are hidden.

r_threshold

Minimum absolute correlation to display.

hide_within_group

Logical; if TRUE (default) correlations between two variables in the same category are hidden – and excluded from the multiple-comparison family (see Details). Self-correlations (the diagonal) are always excluded.

method, use

Passed to compute_correlations(): the correlation method and the missing-value handling.

adjust

Multiple-comparison adjustment method applied to the raw p-values over the displayed family of correlations (see Details). Any method accepted by stats::p.adjust() (e.g. "holm", "hochberg", "BH", "bonferroni", "none").

r_limits

Length-2 numeric giving the colour-scale limits (c(vmin, vmax)). Correlations beyond these are clamped for colour.

palette

Colours for the diverging link scale at c(r_limits[1], midpoint, r_limits[2]), overriding scheme's. NULL (default) uses the scheme's palette, or a blue-white-red scale if scheme is also NULL.

start_degree

Angle (degrees) of the first variable; 90 places it at the top, going clockwise.

group_gap, node_gap

Gaps (degrees) between categories and between variables within a category.

link_lwd

Line width (size) of the links. Increase for thicker lines.

sort_links

If TRUE (default), stronger correlations are drawn last (on top).

tile_height

Radial thickness (size) of the coloured category blocks. Smaller values give thinner blocks at the rim.

label_cex, tile_border

Label text size and tile border colour.

label_pad

Extra canvas padding (as a fraction of the circle radius) to keep long outer labels from being clipped. Increase for longer labels.

label_r_offset

Radial gap (in circle-radius units) between the outer edge of the tiles and the start of the labels.

title

Optional plot title.

legend, colorbar

Logical toggles for the category legend and the correlation colour bar.

legend_title, colorbar_title

Titles for the legend and colour bar.

Value

Invisibly, a list with the ordered vars, resolved groups, colors, the col_fun colour mapping, the masked matrix of correlations actually drawn (others NA), the family-adjusted p-value matrix p_adjusted, the number of drawn links n_links, the size of the comparison family n_tests, and the adjust method applied.

Details

A traditional correlation matrix is dominated by redundant information: the diagonal of self-correlations, the mirror-image lower triangle, and blocks of within-category correlations that are rarely of interest. The wheel keeps only the correlations you actually want to inspect – by default the between-category correlations, with self- and within-category correlations hidden.

This is not only a display choice; it is carried through to the statistics. The multiple-comparison adjustment (adjust) is applied over only the family of correlations shown – i.e. excluding self- and, when hide_within_group = TRUE, within-category correlations. Because those redundant comparisons no longer count towards the family, the correction is less severe and statistical power improves.

Examples

grp <- list(
  Demographics = c("Age", "BMI"),
  Metrics      = c("Amplitude", "Fed-Fasted AR", "Frequency", "GA-RI"),
  Symptoms     = c("Nausea", "Early satiety", "Bloating", "Upper GI pain",
                   "Lower GI pain", "Heartburn"),
  Scores       = c("GCSI", "PAGI-SYM", "PAGI-QoL", "EQ-5D")
)

# `gastro_symptoms` is a synthetic example dataset bundled with the package
# (available directly after library(circlecorR) -- no need to call data()).

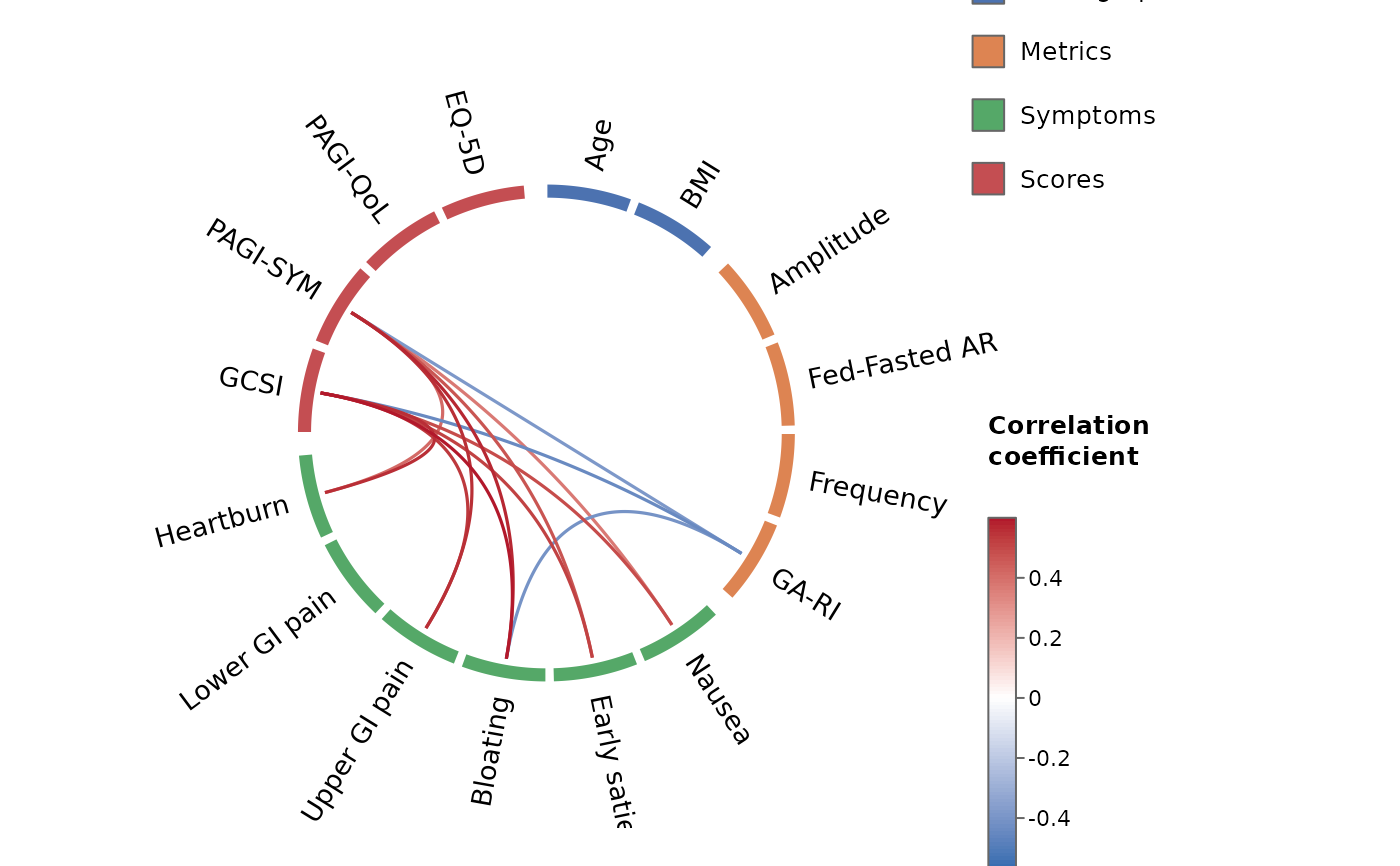

corr_wheel(gastro_symptoms, groups = grp, r_threshold = 0.3,
           r_limits = c(-0.6, 0.6))

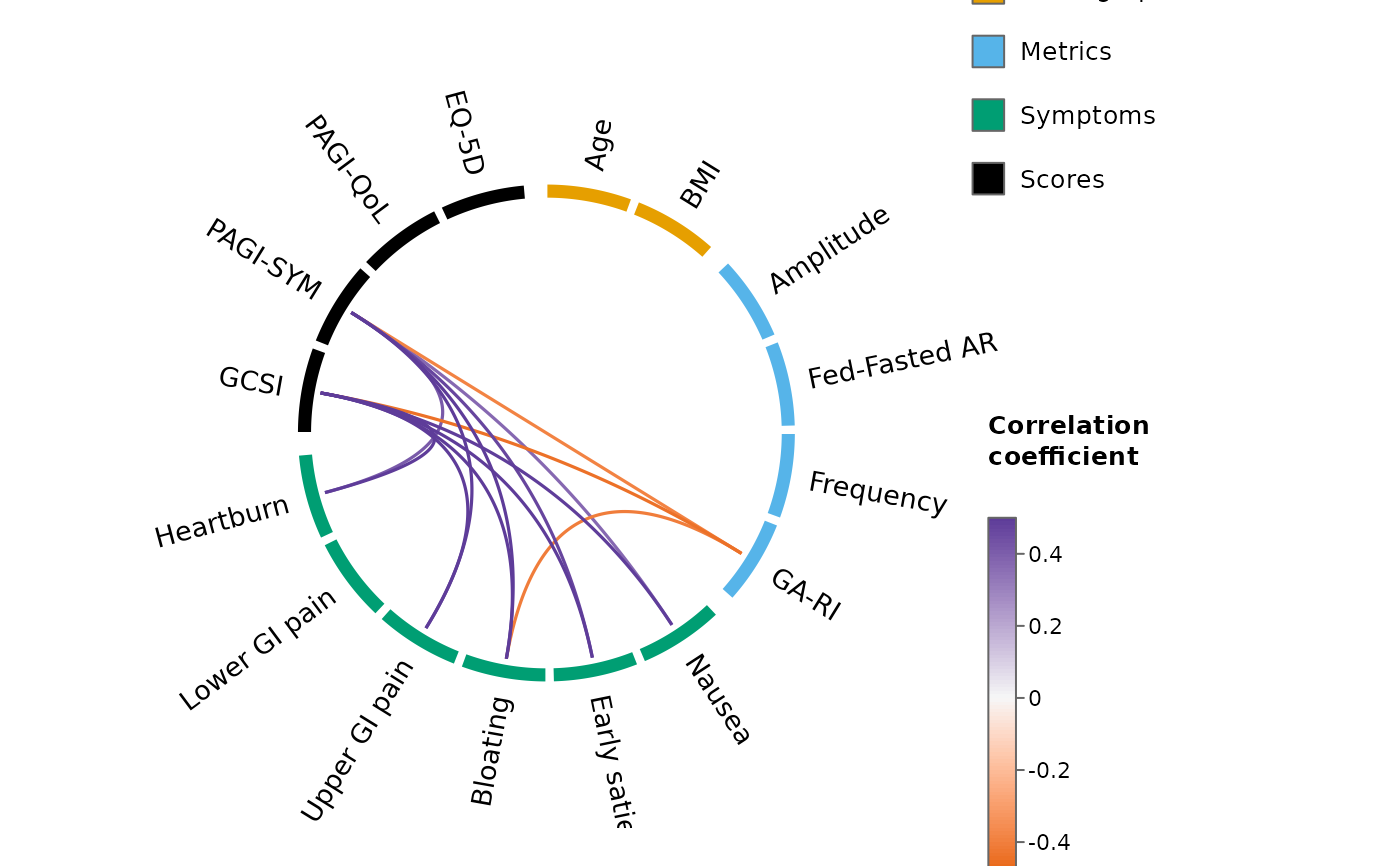

# A built-in colour scheme, with one category colour overridden
corr_wheel(gastro_symptoms, groups = grp, r_threshold = 0.3,
           scheme = "colorblind", colors = c(Scores = "black"))
